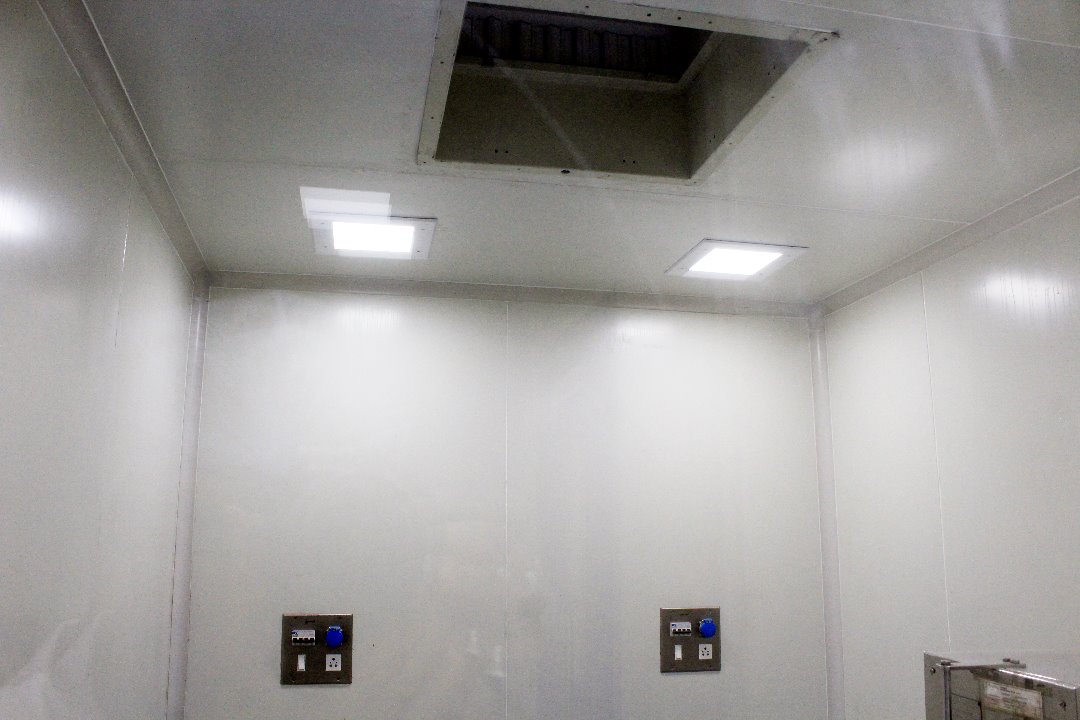

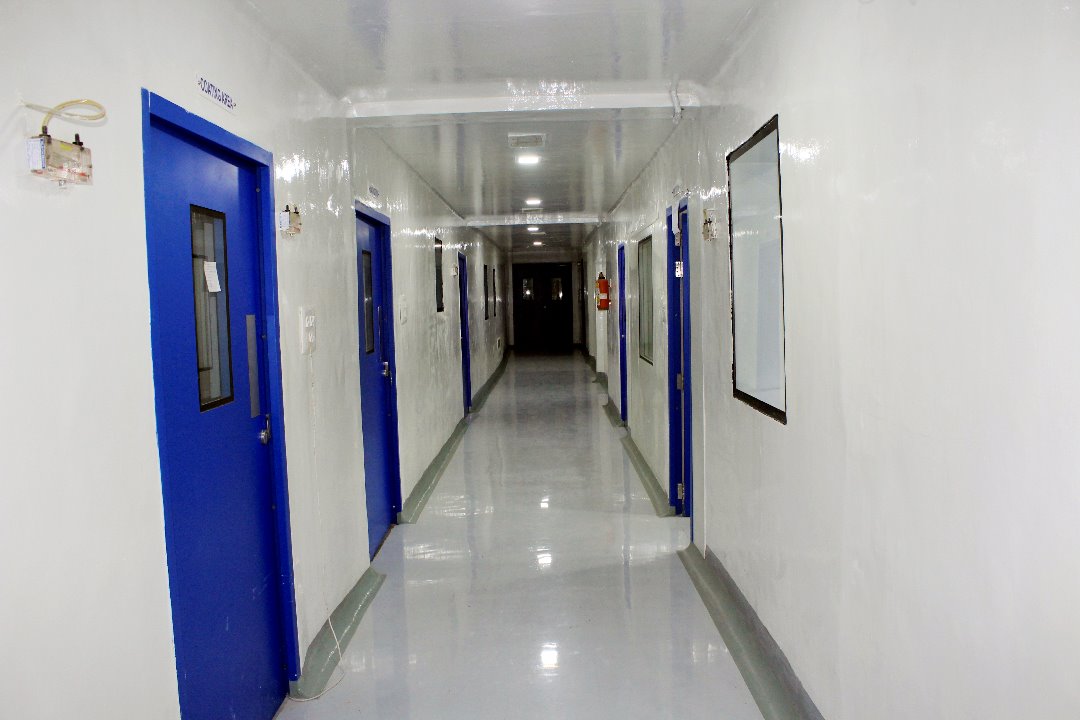

CLEAN ROOM PARTITION AND CEILING PANELS
We offer a wide range of clean room panels to meet different types of modular clean room operation needs. Our Partition panels and ceiling panels are designed to provide a clean and reliable system for existing as well as new installations to meet clean room specifications.
- MOC-PPGI/PCGI.
- Normal Panel Dimensions - 1200mm width and 3000mm height.
- Panel Thickness – 30mm to 100mm.
- Infill - PUFF of 40Kg / m3 Density.
- Joining systems – Panels shall be joined by GI/Aluminium connecting profiles system to insure structural rigidity and proper panel to panel alignment.
- Wall base runners – Panels shall sit in a minimum 18 gauge galvanized steel track anchored to the floor required.
- Ceiling panel hanging arrangements – fixed from civil wall or structural MS Grid.
- Coving and 3D corners systems – Aluminium / PVC.
- Sealing systems – Silicon sealant.
- Clean room window - Our standard clean room window comes with safety glass wrapped in anodized aluminium / PPGI / PCGI frames with radius corners. These are pre-manufactured in our modular wall panels before arriving to sites. We manufacture custom clean room windows according to their required sizes, colours and materials.

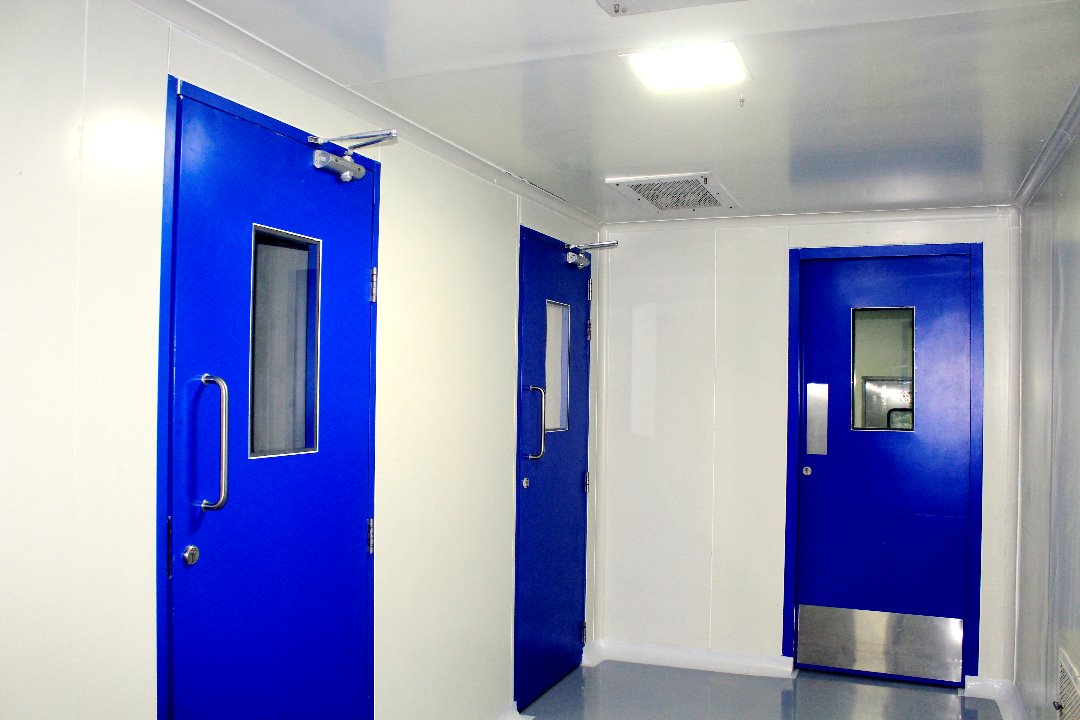

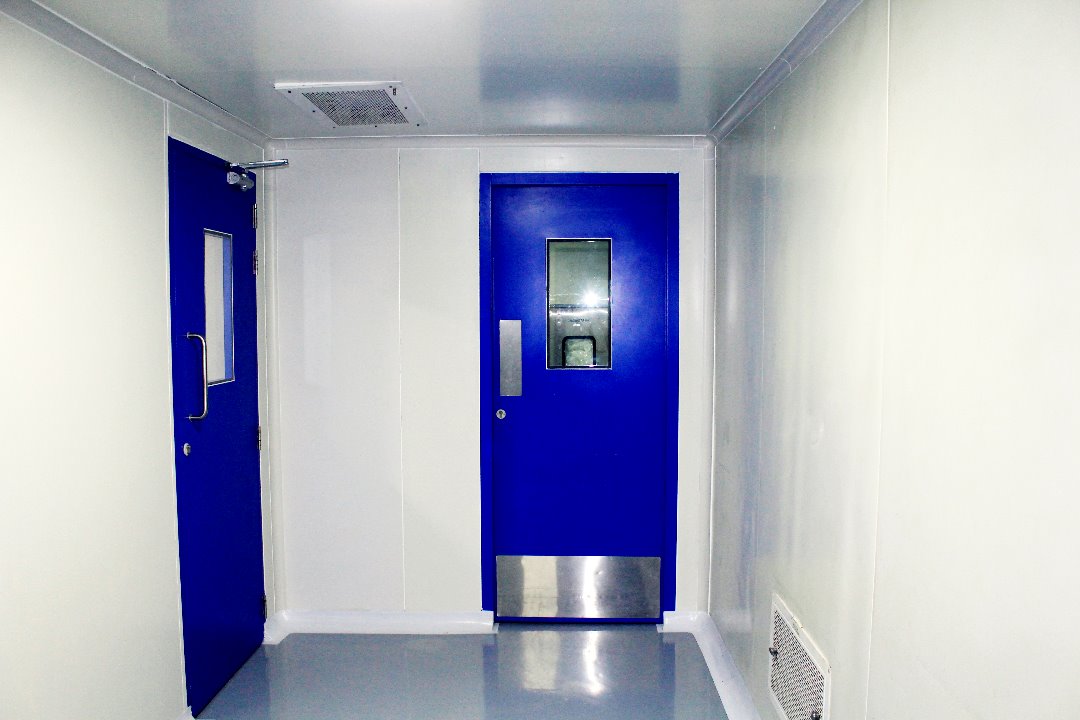

CLEAN ROOM DOORS
Our clean room doors play an important role in preventing cross contamination, maintaining correct room pressure, air circulation rates and ensuring optimum operating efficiency.
Our clean room doors are constructed in single and double shutters / panels. The features include air tight hinges for effortless movement, door handle and drop seals to insure complete closure. Door closure option includes locking mechanisms and hydraulic closures.
- Construction – 50mm to 100mm thick metal frame.
- Surface – Powder coated ACC to RAL or smoothed stainless steel.
- Options – Single leaf & double leaf.
- Door Accessories - The specifications can be customised as per customer requirements.
LIFT LANDING AND CABIN DOORS
We are an emerging company in providing a wide range of lift landing doors and cabin doors. We at Subham, design lift doors that are of superior quality, ergonomic design and style. The offered Product range includes lift cabin doors (automatic and semi-automatic)
MODULAR HOUSE
Subham Modular Houses are Fabricated in steel structure with wall and roofing of insulated panels.
- Basic frame is made with channel, Pipes and Angles of GI or MS.
- The Structure will be mounted on concrete or Steel Raised Floor Framing.
- Installation will be made at the desired location.
- Easy to relocate.

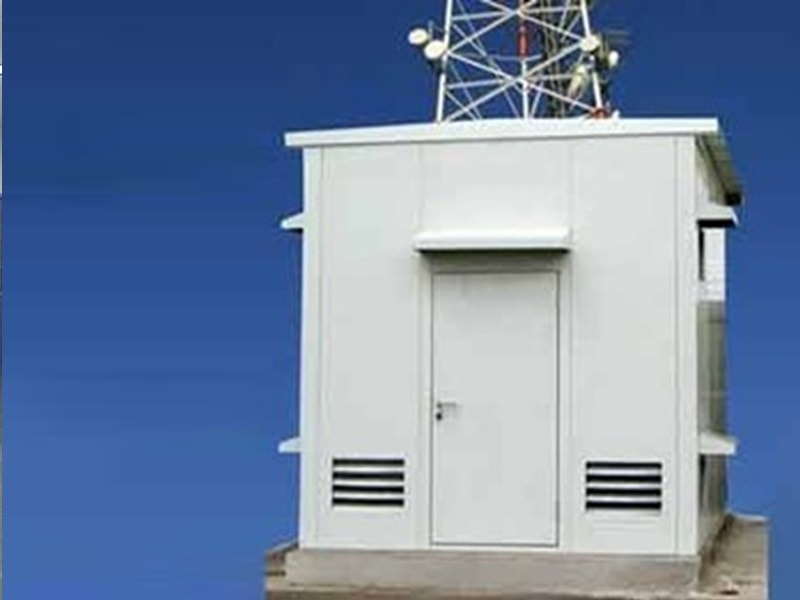

TELECOM SHELTERS
We manufacture shelters with panels of metal and bonding. Our telecom shelters are self-supporting with metal puff panels and specially designed doors. Our shelters are corrosion resistant, dust and dirt proof. We provide protection to high value telecom equipment. The specifications can be customised as per customer requirements.
FIRE RATED DOORS
Our fire rated doors and frames are designed to perform in the most demanding environments.
- Available in galvanised or stainless steel.
- Rock wool infill.
- Tested at authorised laboratory.
- High aesthetics and robust structure.
- Fully flush constructions
- Easy to install on a concrete wall & clean room wall partitions.
- Can be supplied in a wide range of colours
ACCESS PANEL
- Custom designed access panels
- GI construction
- Fixed with silicon
- Allows access for equipment during project
- Allows removal of equipment for maintenance
- No need to remove any panels
- No need to cut flooring
- To be fixed with GI panelling system.
GARMENTS LOCKER
This cabinet is fabricated with superior quality Stainless steel 304. It is fabricated by using the best quality stainless steel, the Stainless Steel Lockers are used in pharmaceutical laboratories and hospitals for storage purpose. The distinctive features of these lockers are their superior finishing, proper ventilation mechanism to preserve the original quality of stored product, easy handling system and premium quality. Apart from their rust proof design, these lockers are featured with advanced lock system for the safety of stored items.
STEP-OVER-BENCHES
- High quality, tough and durable step-overs
- Manufactured from Stainless steel 304.
- High impact strength
- Resistant to cleaning agents
- Available with or without shoe storage
- Removable for equipment access
- Available in various lengths and configurations
- Integral rebate to accept any floor finish
- Can be incorporated into any cleanroom system or as part of our modular system
DYNAMIC PASS BOX
- Dynamic Pass Box Works like an airlock or Laminar Air Flow unit. Clean air enters in the Pass Box and prevents the entrance of the contamination.
- Ultra-violet light is also installed in the Pass Box to remove the contamination that may enter during the transfer of material. It should be replaced after 1500 burning hours.
- Material: Stainless Steel 304/316 quality with double skin body and pencil coving inside.
- Size: Available in various custom-made sizes
STATIC PASS BOX
- Pass boxes are used to transfer material for blending, granulation or sterilization in the manufacturing area and sterilization & incubation in the microbiology laboratory. In some cases, equipment parts are also transferred through the Pass boxes in sterile manufacturing areas.
- Ultra-violet light is installed in the pass boxes to remove the contamination that may enter during the transfer of material. It should be replaced after 1500 burning hours.
- Material: Stainless Steel 304/316 quality with double skin body and pencil coving inside.
- Size: Available in various custom-made sizesq
